Adding lighting to cars?
dr_dodge 9/21/26
so, since CC said I could light the Freezie car
the interior of c3po into a circuit board
the velocity stack and jet exhaust have 4 color flash leds in them

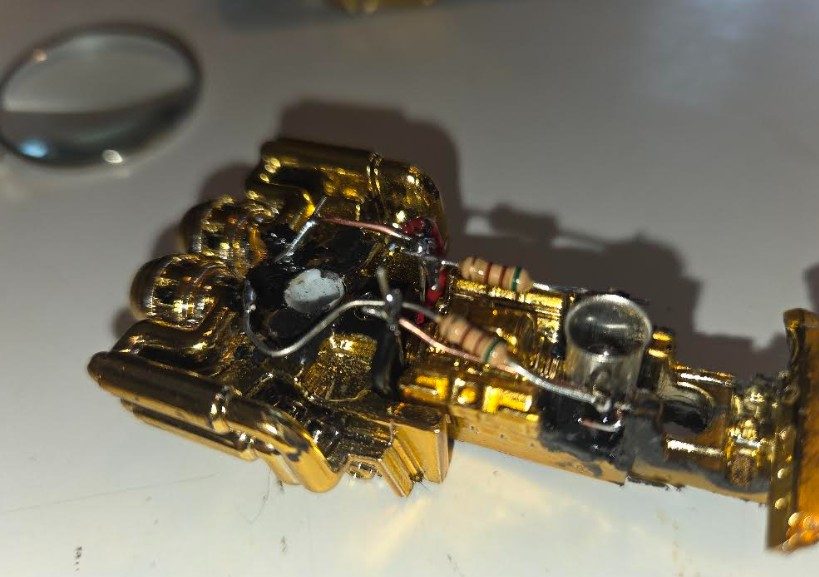

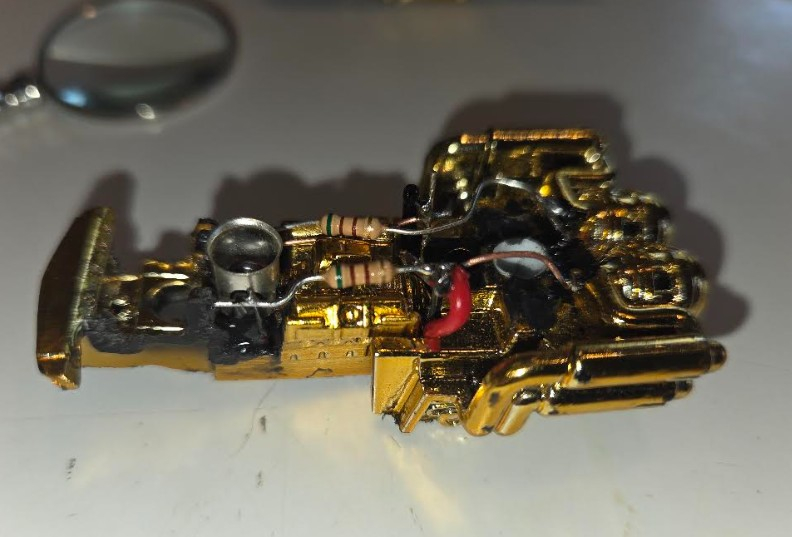

the futuristic power plant from moparnia

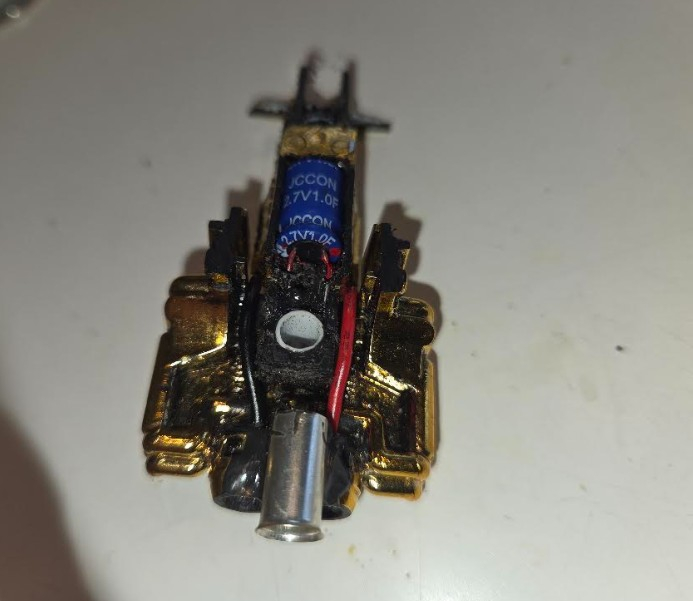

2.7v 1f supercap off amazon, $1 each if ya buy a bag
I'll do a build thread as soon as I wrap it up
runs for 15 minutes all colors, and still flashes red at 40minutes on a 2 second charge (2 x AA)
Log in to join the conversation or sign-up now
my experiments have also used super caps. cheap source for them, the crash racer cars
2.2 volts, charges instantly. a charge on a cap w/red/blue flash ran about 4 hrs both flash,
and at 8-9 hrs the red was flashing, but barely visible. used 1 led, 5 f cap out of a crash track car
fiber optics to the light spots in the body. and controll the light leakage
you can heat and reshape the ends of plastic fiber,
hot glue is a bad choice, melts the coating on the fiber
never tried any glues, but careful of the coating
settled on my old reliable metal tape which does well to hold it down
copper tape (stained glass stuff) conducts, so you can make a circuit board in the glass
no need for wires, tape and the leads
also use metal tape to block/control stray light
no working prototypes currently, because I am building my 1:1 custom car,
but I have converted some of the 72 dart's lights to leds,
and planning an interesting interior &dashboard that is all led lit,
and super caps for delaying them going off
any questions just ask
dr
