Jamestown gets a beltway bypass
Jamestown it the name of the town on my HO layout upstairs in my house.
I have been trying to get work done on the future city build, but because the upstairs is also the guest room, it's been more of put it up, then take it down/put away.
So I switched gears because I wanted to run cars.

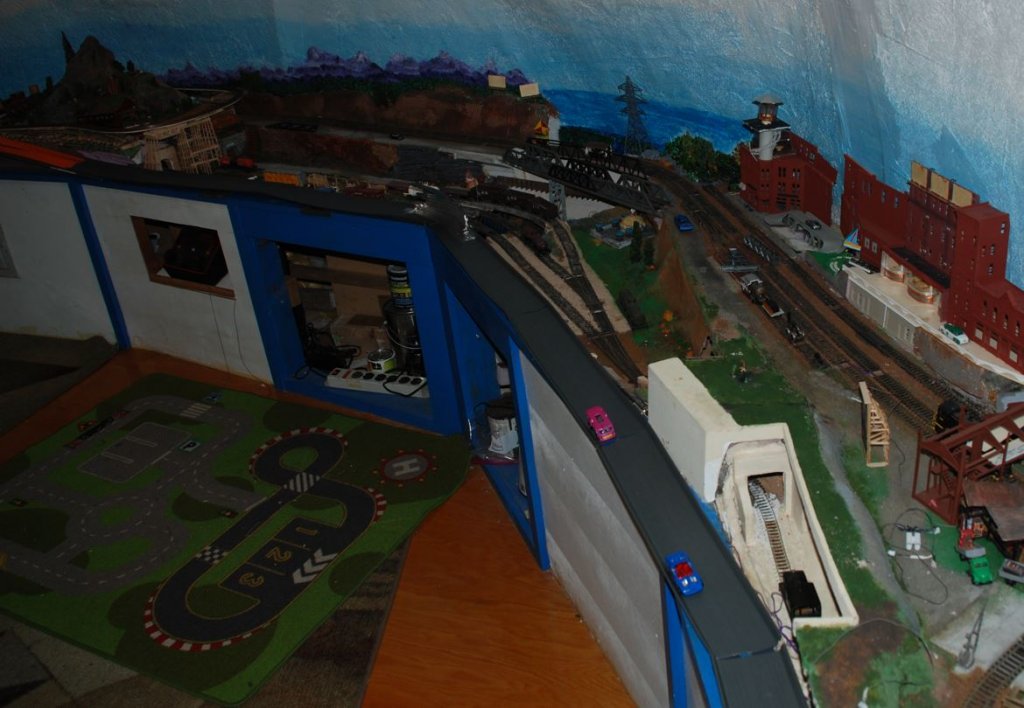

I built a flat road coarse on the facia. It's 15 feet of orange 2 lane, and 15' (so far) of crash track.
about an 8 second run with stock cars
This build was a bit difficult because of the house itself, because it's a styrofoam geodome.

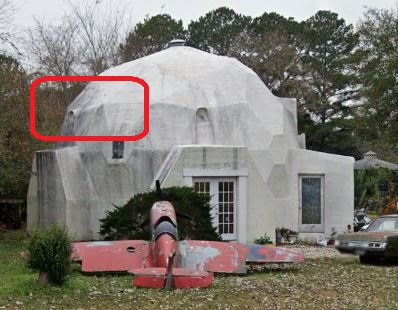

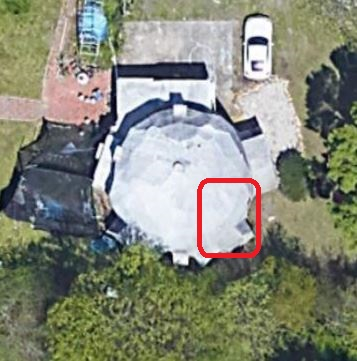

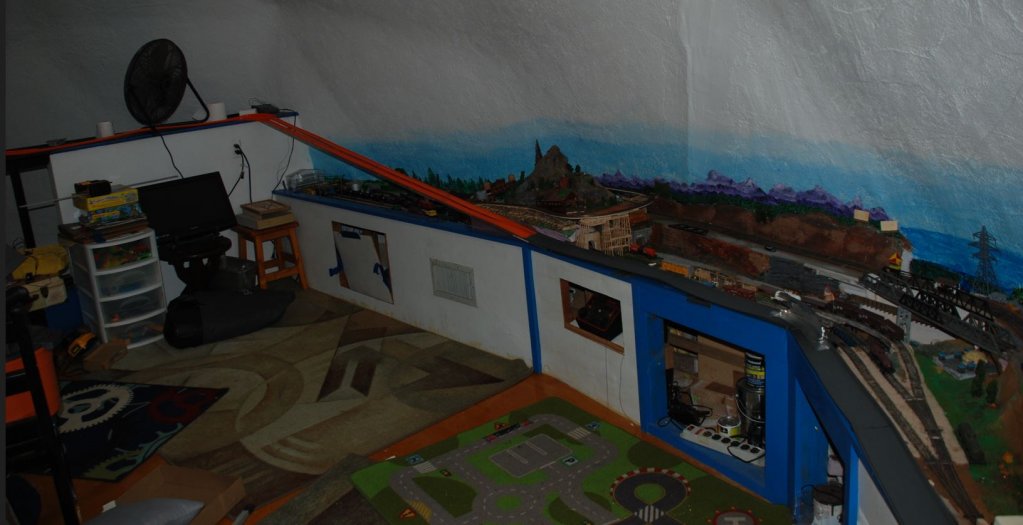

as you can see, it's a curved wall (red is about where the track is)

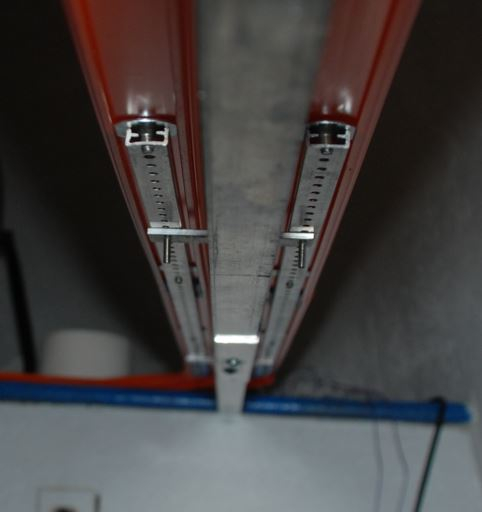

I built an aluminum square beam as bridge support, 1"washers on perforated stock countersink the screw heads, and some additional small pieces. Drilled and tapped most of it.

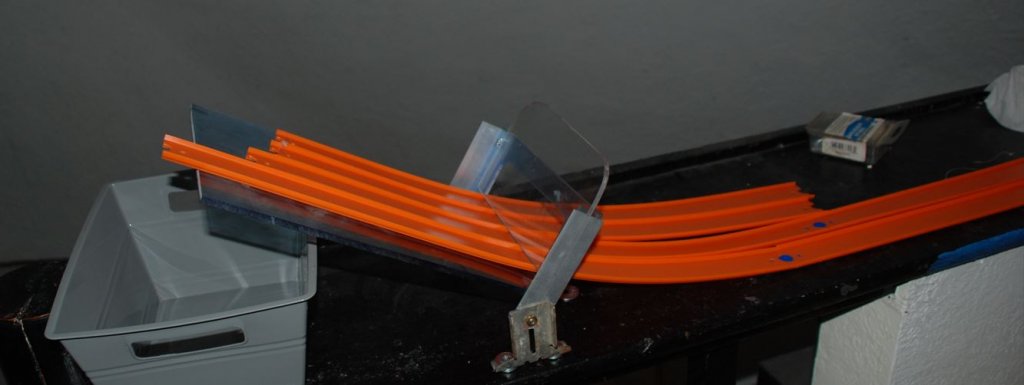

I want to get a better corner, this one is a chopped up ct intersection, but they do run thru it pretty well.
So I present the Jamestown Beltway Street Raceway

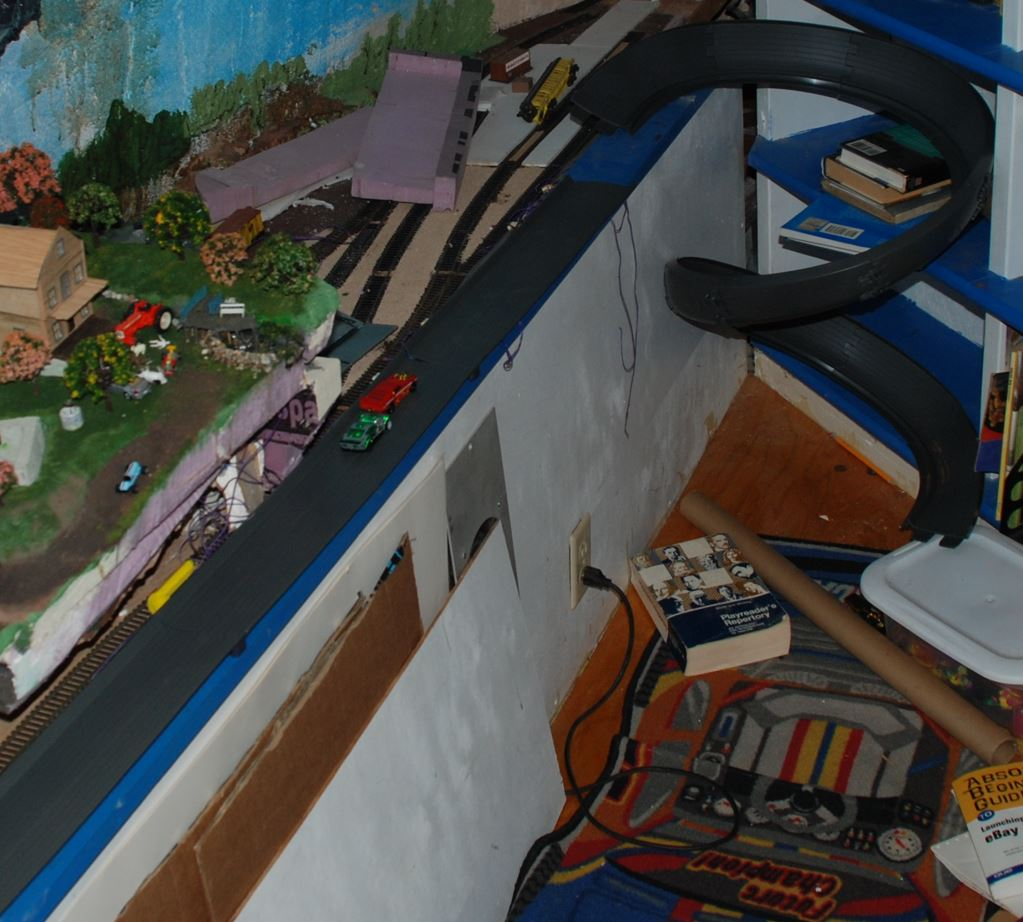

currently eyeballing installing the spiral, and sending the cars back across the floor, but, not today
we did have a minor hazmat situation with the propane tanker

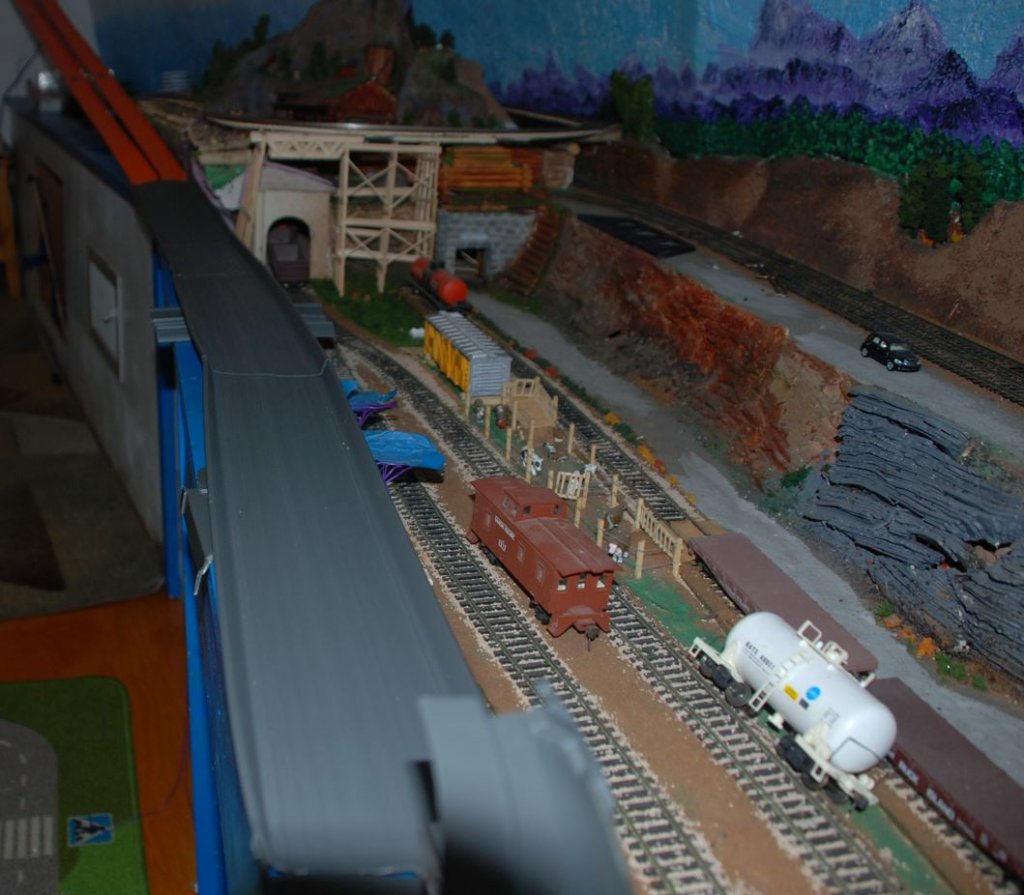

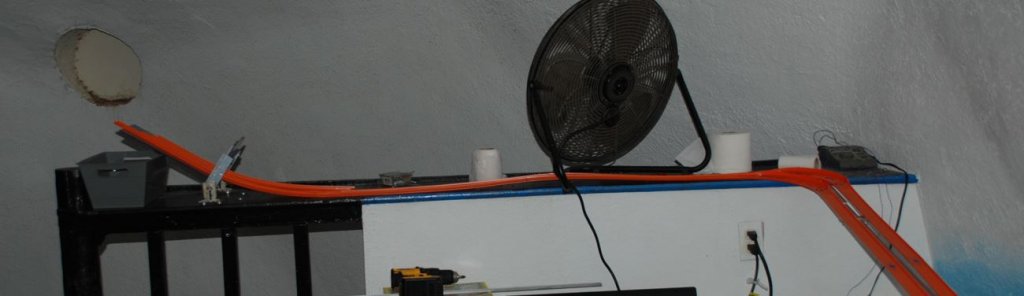

You can see the constant curve I have to work around
my adjustable lift door launcher, and car basket
under the bridge
one day I will be hosting races, but for now I'm happy I can run cars
(I have a short vid, but don't know what to do to upload it)
dr
(by the way, thats a real airplane as yard art, time warp spitfire)
https://en.wikipedia.org/wiki/Time_Warp_Spitfire_Mk_V
http://rodneybrothers.com/home/time-warp-spitfire/
Discussion
the bridge track attachments
www.youtube.com/watch?v=sWI_hiryxB4&t=10s
something different (road bed wise)
www.youtube.com/watch?v=9ltNigw_PJ8
www.youtube.com/watch?v=vuE0rEovN1k
a final video for now
it explains my main road surface, used flooring.
www.youtube.com/watch?v=HWXbCRSs3Z0
A new installment
I explain counter sink on the washers
use carpet hold down strips,
taped for 10 - 32 countersunk head stainless screws, no drilling
some #8 self tappers attach the track holders

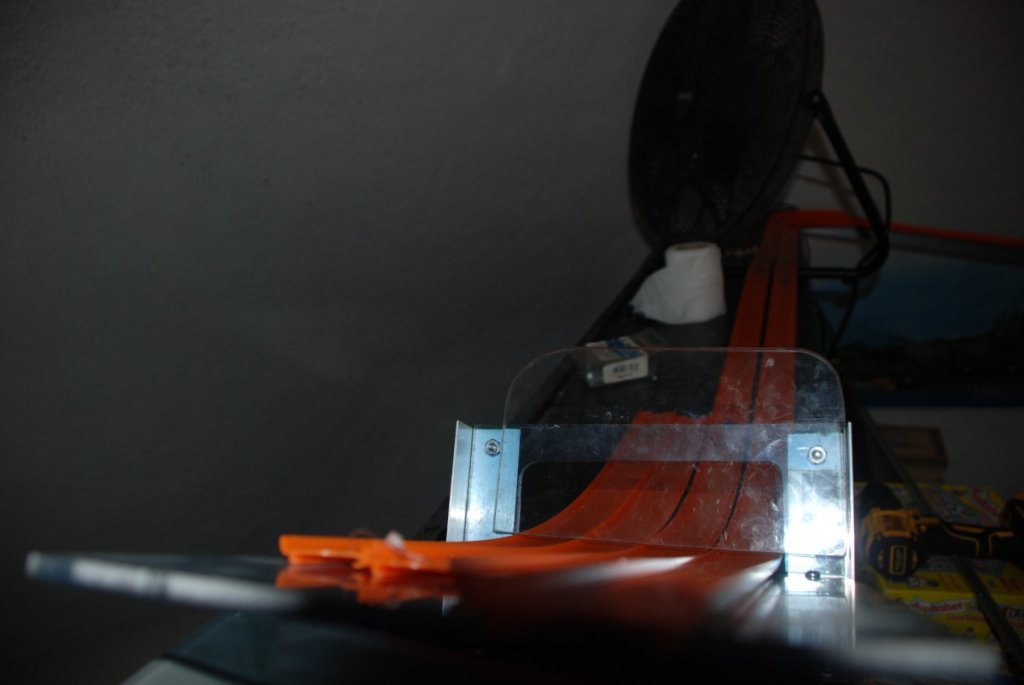

A Nice finish out to phase one the launch area.
the tracks were just draped over the legs of the fan before,
now all solidly mounted
enjoy the video, ask anything
dr
www.youtube.com/watch?v=C41Om1E3150
p.s.
FYI, the hump sorts slow cars
a slow crappy car should not get to the corner
fast one smokes along
I had found that my videos were not clear, and I remembered 3d saying,more light
so today I went to northern tool, and bought 2 sets of tractor lights (12VDC)
1200 RAW is what is said. (x 4)
wow, he wasn't lyin' huge difference in the look
$80 total for 2 sets
www.youtube.com/watch?v=fYkBFJIzn8w
dr
Old Jamestown Road
A new perm launch into crash track
dr
www.youtube.com/watch?v=qyzVE6kOIk4

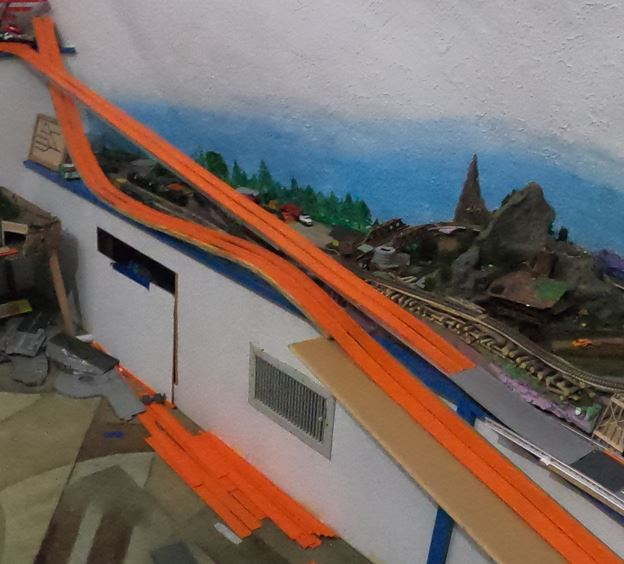

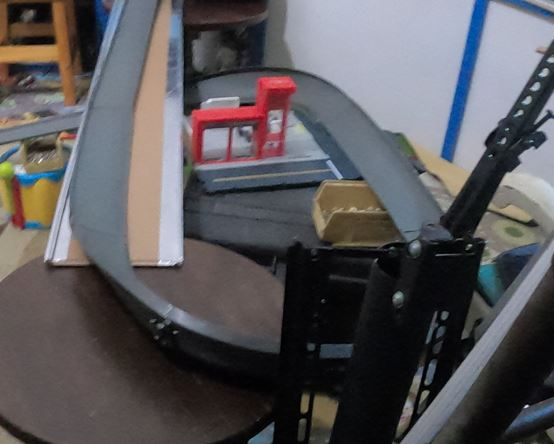

working on figuring out a mt track layout. The track on the launch is prem installed, and the rest will be removable.
waitin' on 2 more boxes of crash track and I'll be happy
dr
- Dang thats looking Great! Must be a mother Bear working with those angles, I appopiated the Back of the Shop, Even to the piont of moving wood stove. — Bent_Rod_Racing
- I could get 20+ more feet with a 15° 2 track and an angle between 35-50° to stick it to the facia wall — dr_dodge
- And I thought I had it tough! — Bent_Rod_Racing

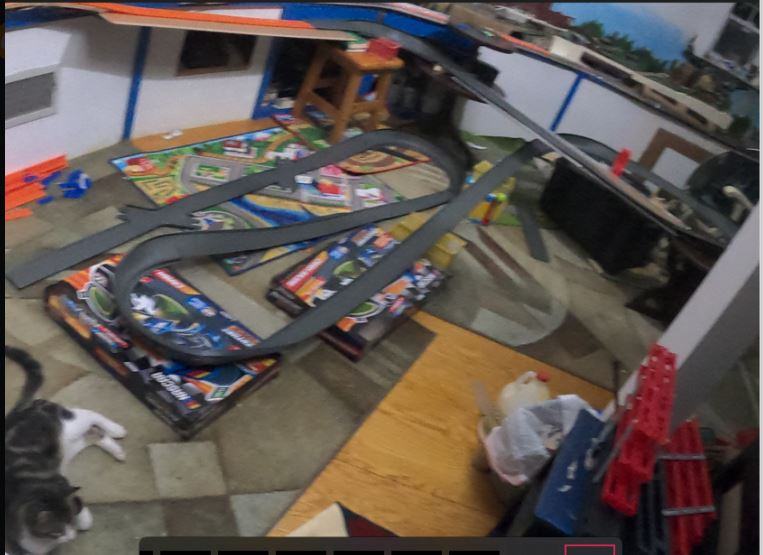

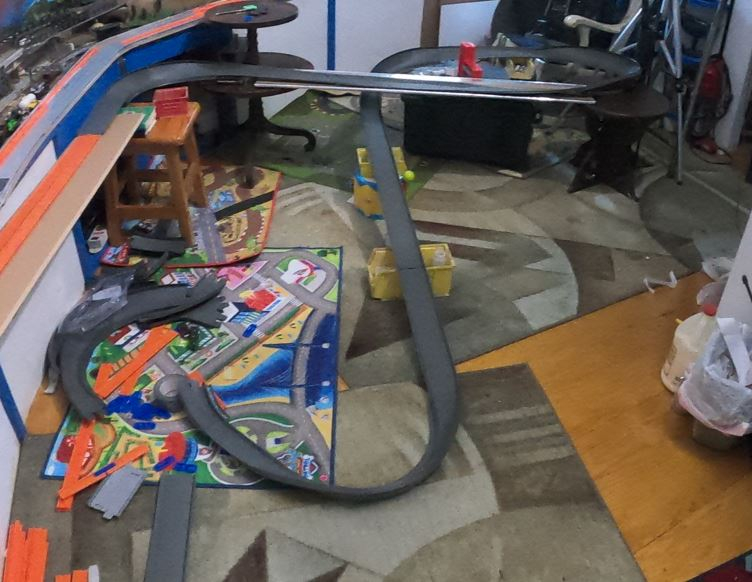

more mock up pics ~35-40 ft)
need more connectors
5 boxes of CT
being cat scanned
dr
- thats looking pretty epic! — Stoopid_Fish_Racing
- Thanks! my track build is slow, but I try to think so far ahead, too. want to host some events one day, and trying to take this seriously, but have to be able to break it down and clear the room for guests. Quite a challenge — dr_dodge
- Agree! Love up that Fur Ball — Bent_Rod_Racing
- Put them in the Barn ; ) — Bent_Rod_Racing
- got plenty of those now — dr_dodge
- I meant the Guests! Just kidding, I just rescued 5 that were dumped up here and one left to live trap — Bent_Rod_Racing
- I have a bunch of ferals at the house. I am on a dead end street, that, and rental houses I have no shortage of poor things abandoned, and can't let them starve. — dr_dodge
- Thank you! I just rescued Momma and 5 young ones. Vet appointment on Friday for two. I volunteer at the Shelter. r — Bent_Rod_Racing
so, I have discovered something
I have been using my compound miter saw to cut track

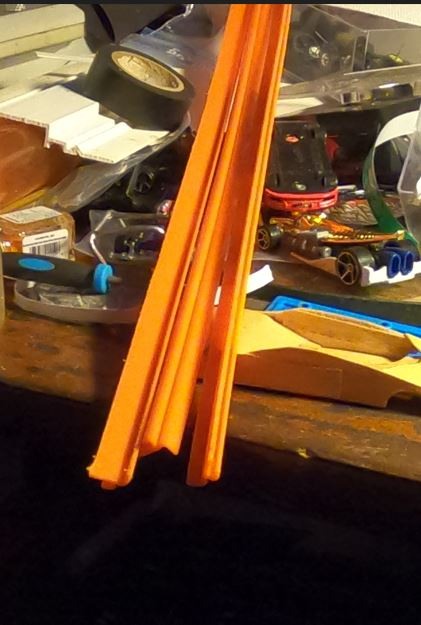

works very good, so I thought, does it rip longwise?
yup, band saw does great.
Why????
Flat corner guard rails! (normal) outside of the track goes down,
and the (normal) surface is the retaining wall....aka rotated 90°
It solved my corner problem.
Overlapped, in a "fantail" configuration.
You can set the spring rate of the corner by removing the rib that (normally) holds one side of the connector. You could even put a wire spring in it if you wanted to.
even crappy cars make the corner, and fast ones hum and solidly thump the book (stopper)
very pleased
dr
the video update
dr
www.youtube.com/watch?v=raMZc5Lxp_E
- Interesting. Like the glass at a hockey rink. Absorbs some energy and spits it right back out. Neat. — redlinederby
- yea, it's very active. I am super pleased with the improvement it made — dr_dodge
- cool... it is always great when an experiment works out! — Stoopid_Fish_Racing
new layout for Old Jamestown Road
First removable shelf is it.
This is the Highlights of track testing as a music vid
I'll do a build update later
dr
www.youtube.com/watch?v=FqXzGQfgPeU
update video
www.youtube.com/watch?v=0BpKZuTrn5M
Very cool! I always wanted a geodome home. As you said, though, you have to work to make things fit.
