Piston Junction Build Journal
www.youtube.com/watch?v=Nshvj8UQnTI

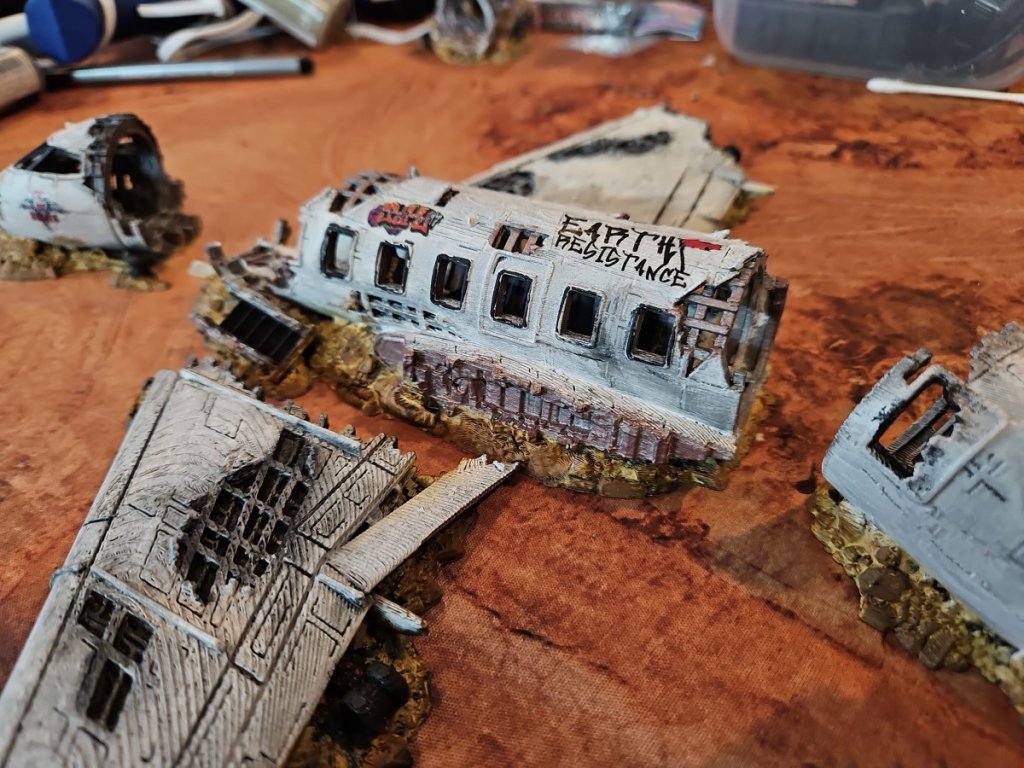

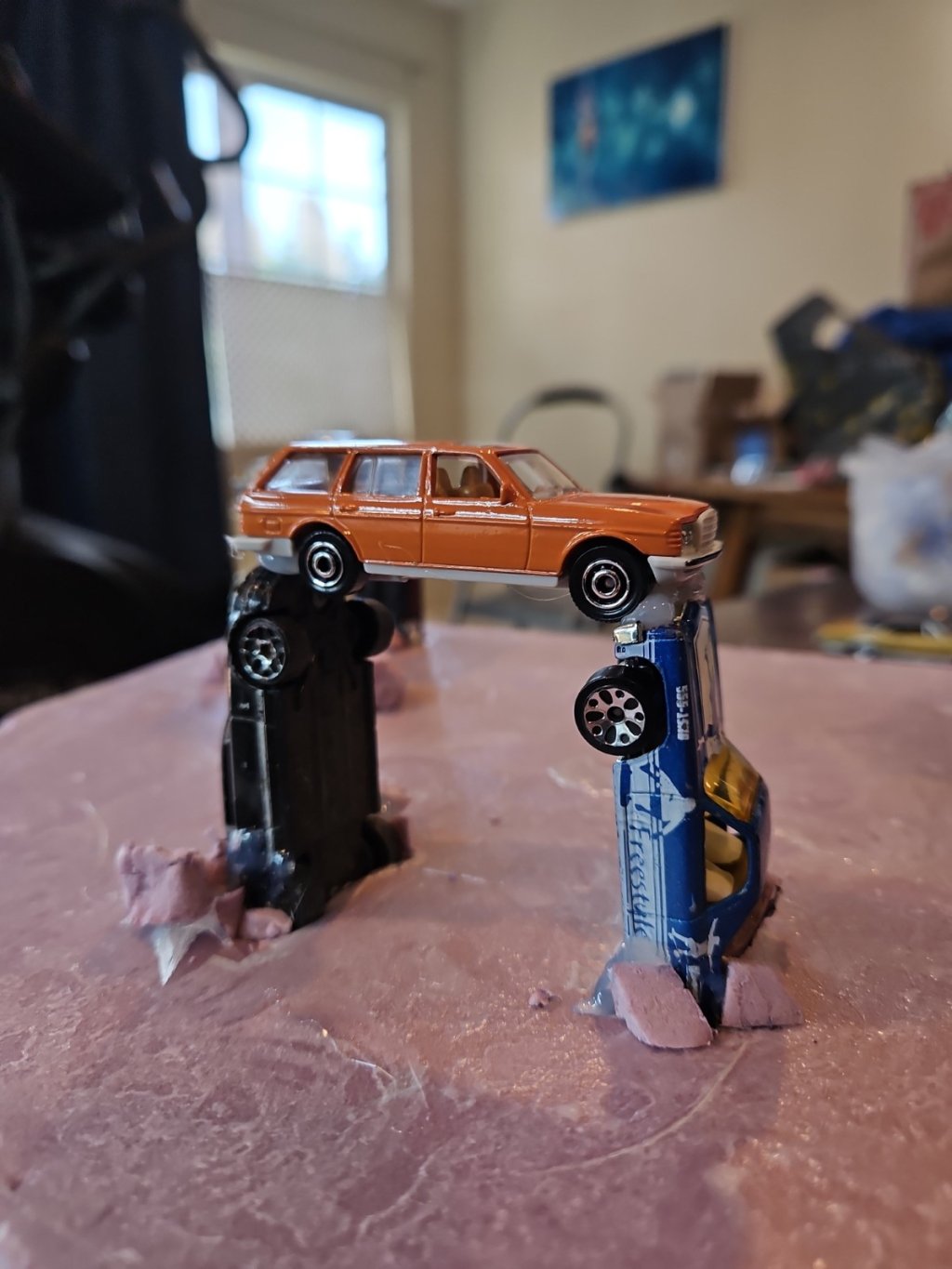

Piston Junction Track Journal - a quick update as to how the track is coming this weekend.
I have to return Slanman's start and finish gates for a tweak that got overlooked in the building and a repair of a non-functioning componant - and he's graciously upgrading it from a wired button-start to a full remote control, so right now I'm using my backup start gate.
Discussion

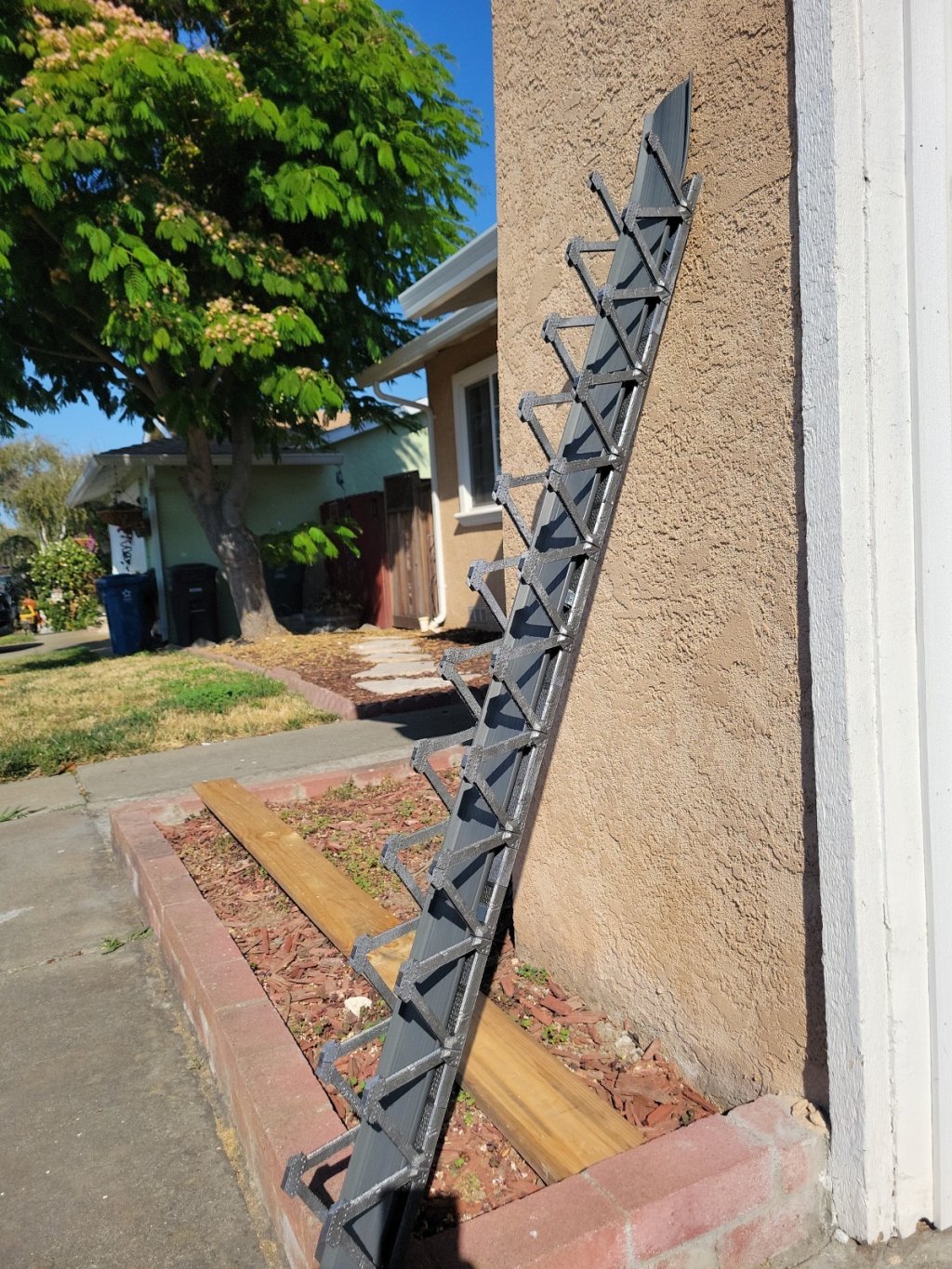

The bridge is partially assembled and sprayed, with the road track firmly mounted.
Next, rusting it up.
- that is gonna look good! — dr_dodge
- that bridge is awesome! — IdRatherDieCast
- Thanks guys. I still need to print the top connecting units, spray them and add them on - but I am keeping them removable for track maintainance. There's no glue in that bridge, either. It's sectional, the peices slot in to each other and its screwed to a supporting rod beneath it. — StarCorps

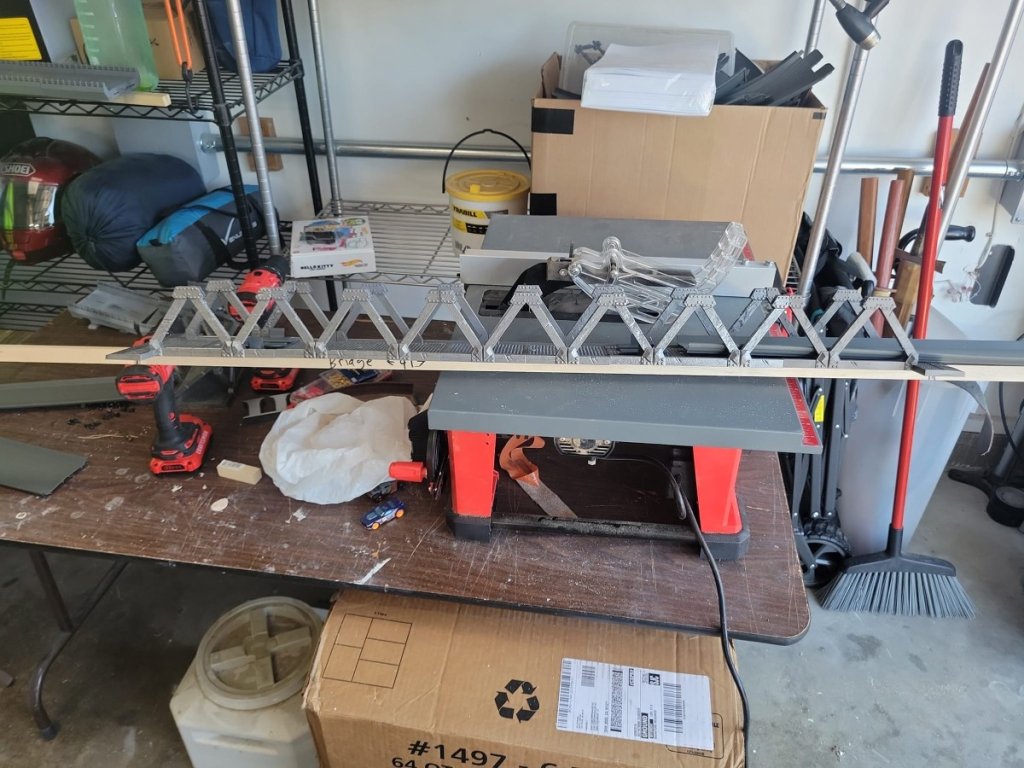

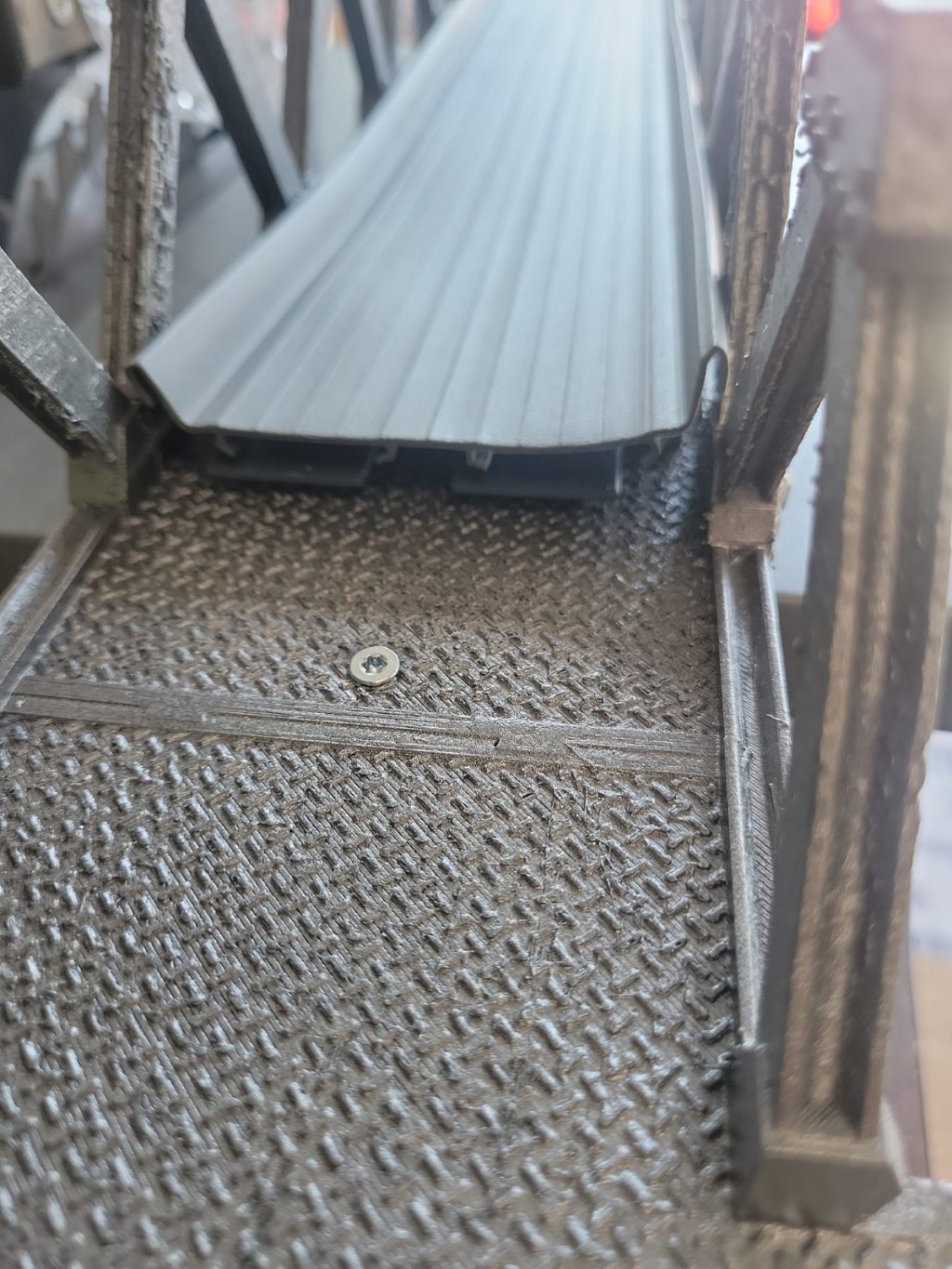

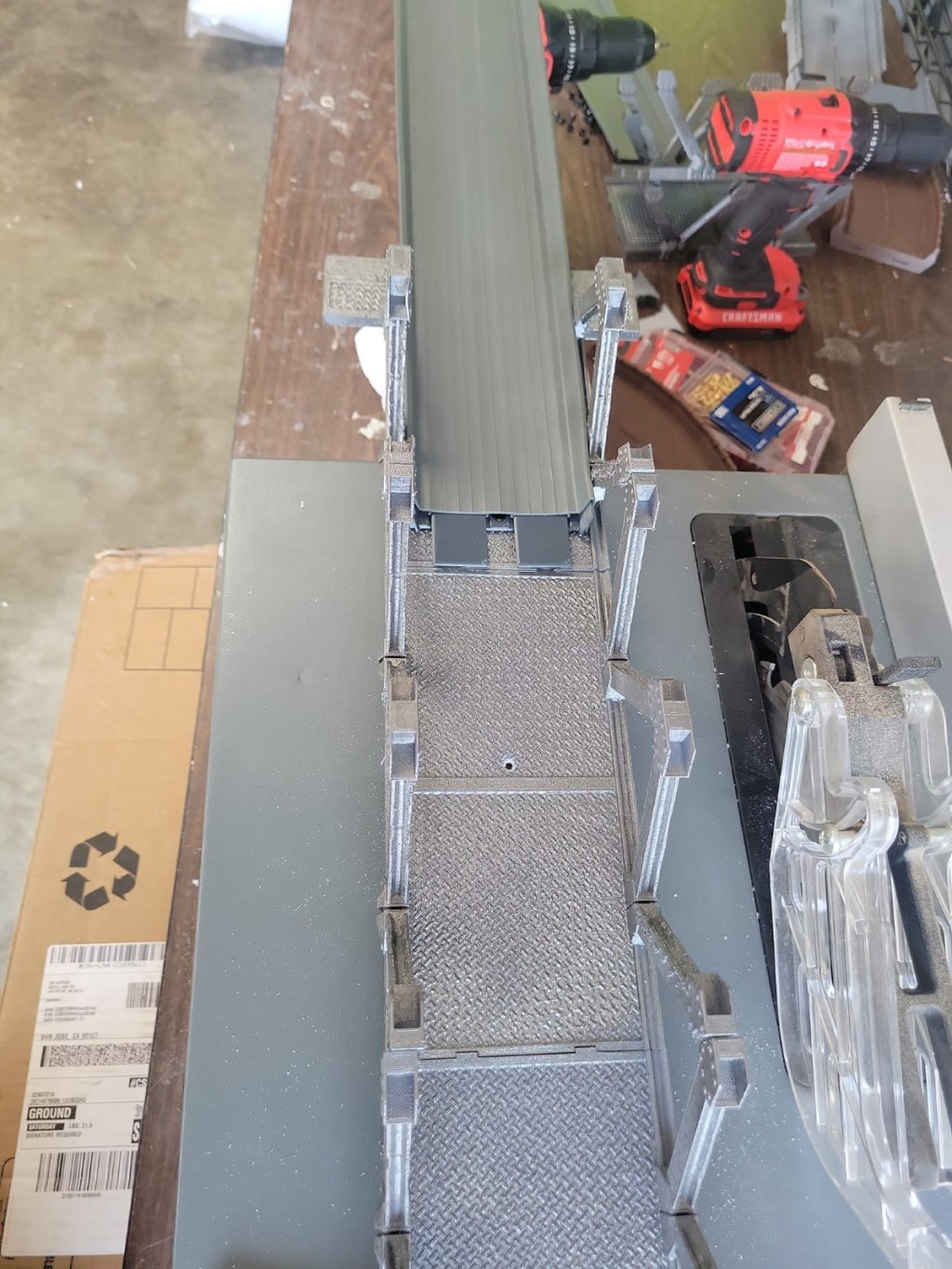

Picture 1: After figuring out how to build the bridge properly, I disassembled it and am reassembling it on its proper length.

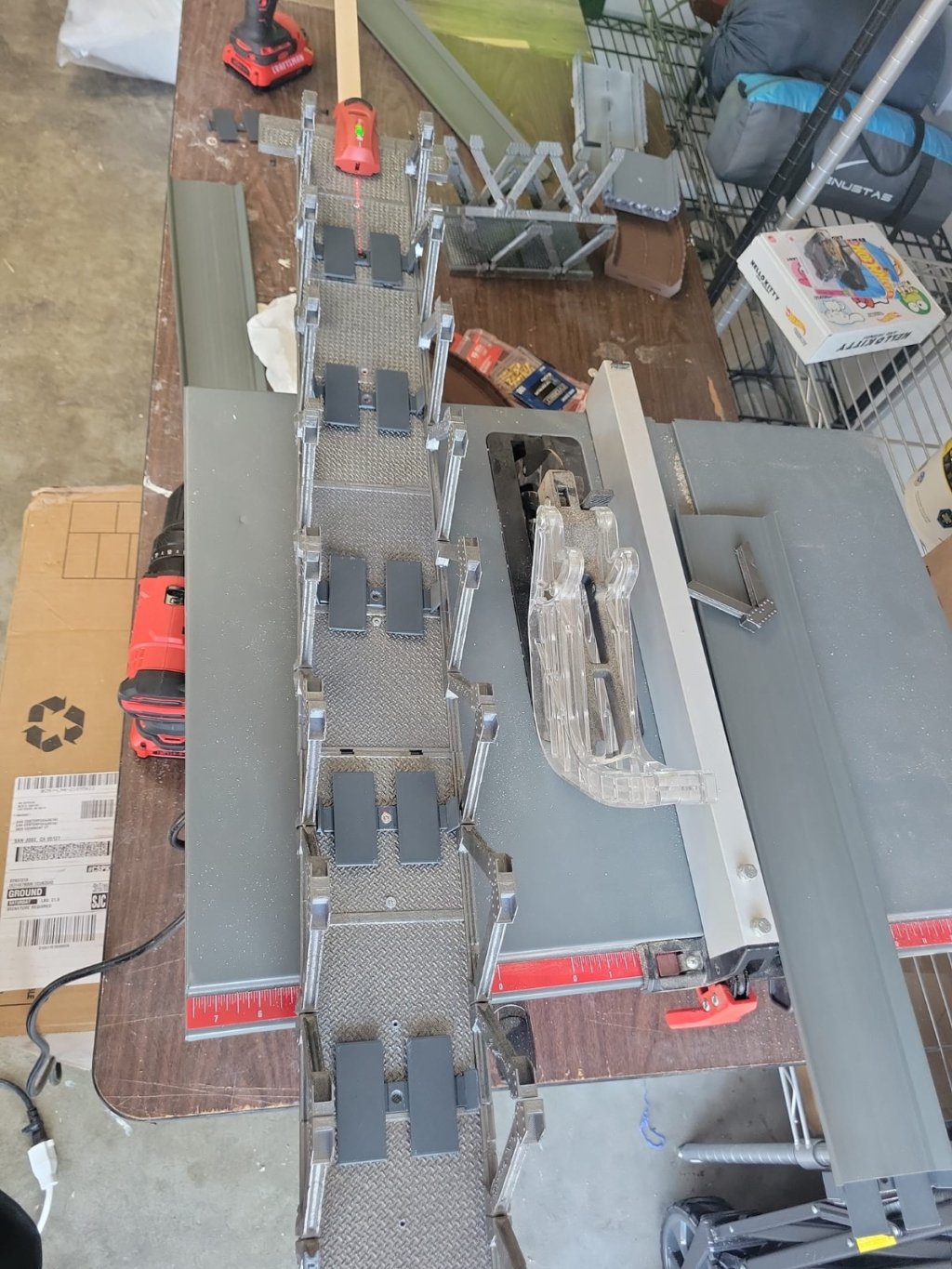

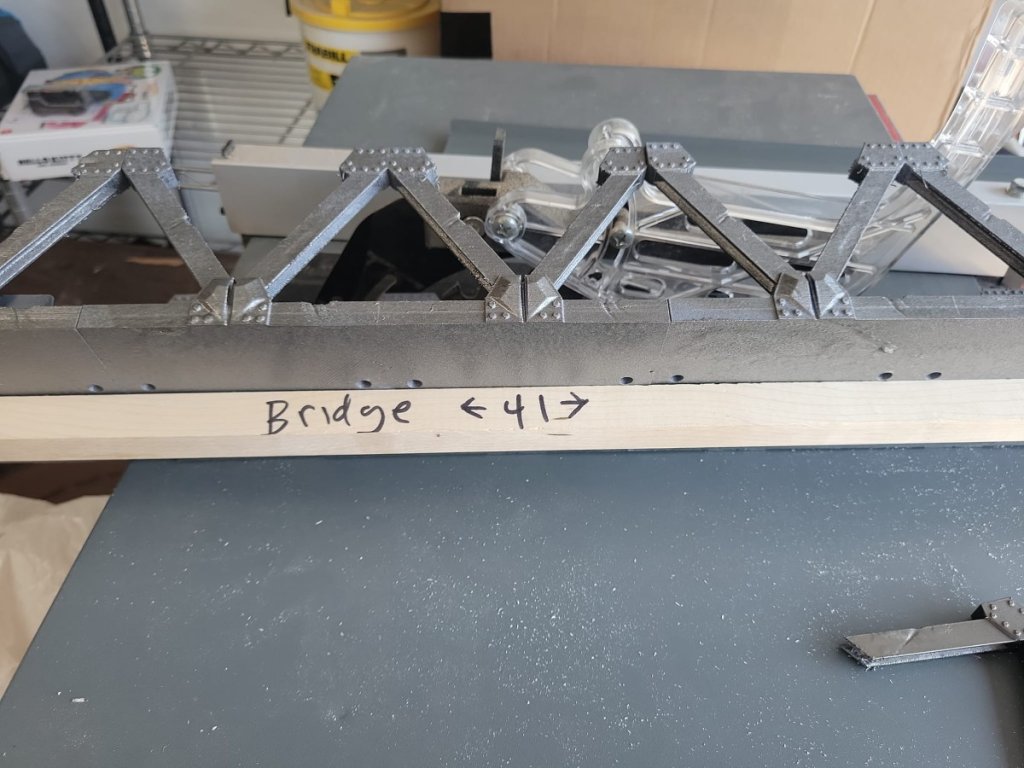

Pic 2: The bridge itself is 41 inches long. It's mounted to a 6 foot 1 by 1 square length.
I centered the strut and then the bridge itself between the two corners it was bridging and marked the wood to guide me in placement, then took the structural strut down.

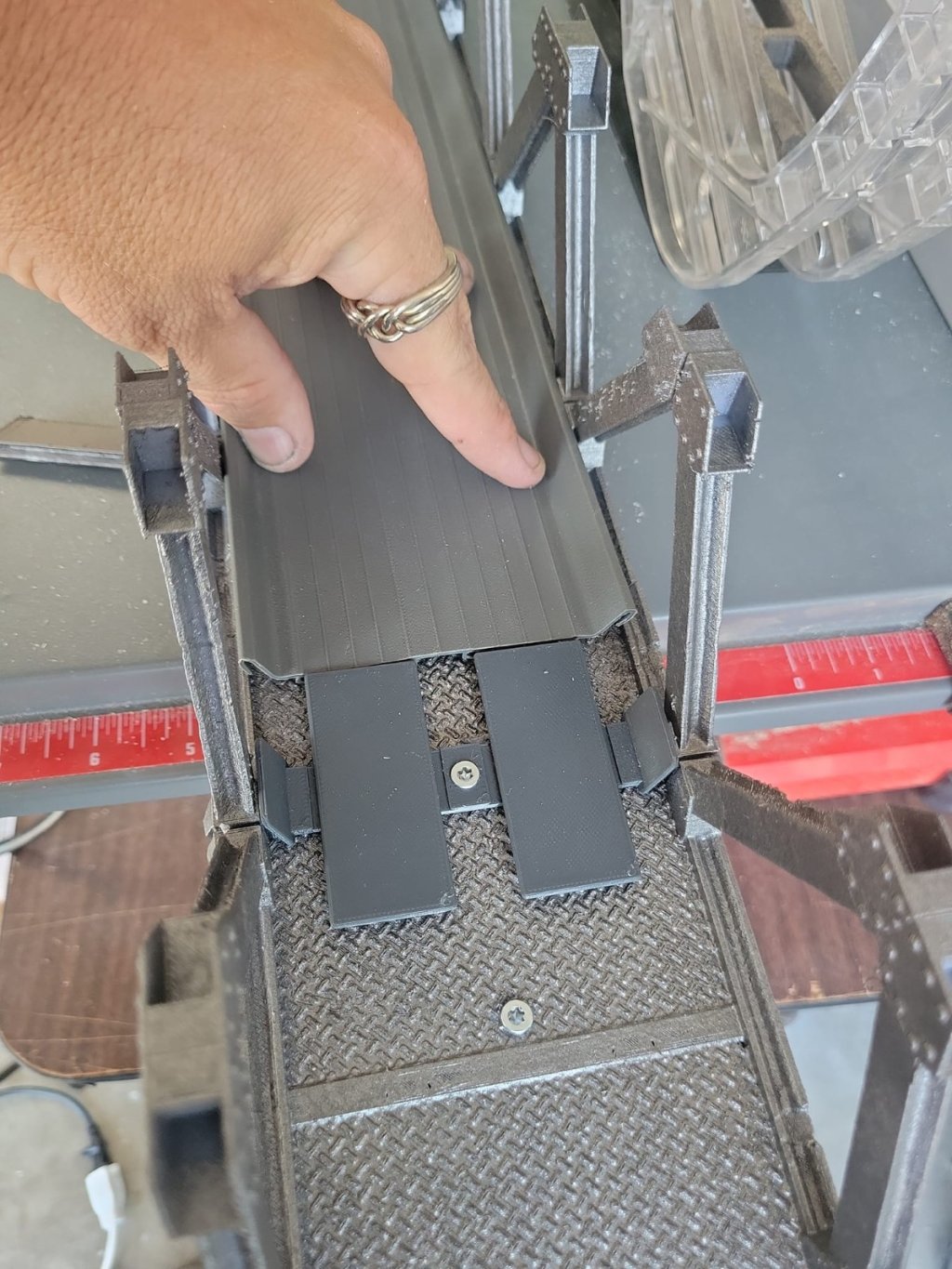

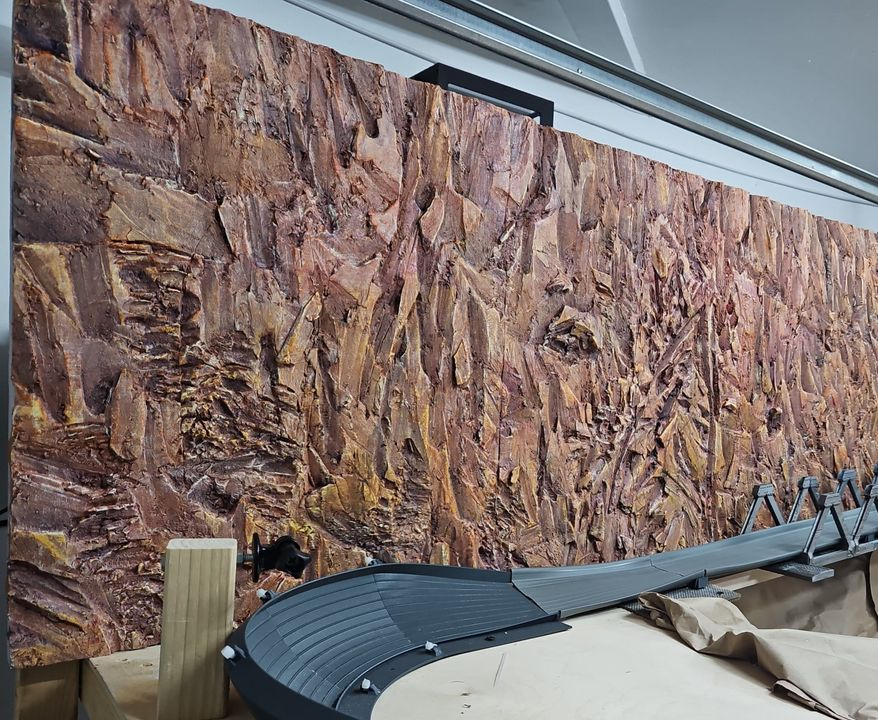

Pic 3: After fastening the bridge (four 3/4 inch wood screws) on the strut, I put the strut back in place on the main structure to plot and lay the track.
I know exactly how much track I need and the specific lengths, so I marked where the first track join would be.
I then affixed the first Slanman Customs track joiner.
Pic 4 and 5: Using the first joiner as a marker, I laid my track length over the joiner, covering it fully. I then affixed another joiner at the other end.
Because each joiner will be half under each track section, they will be perfectly placed.
To keep the track from bowing and to keep it rigid, I used more connectors at an equal distance, using a laser to ensure they are centered and aligned.

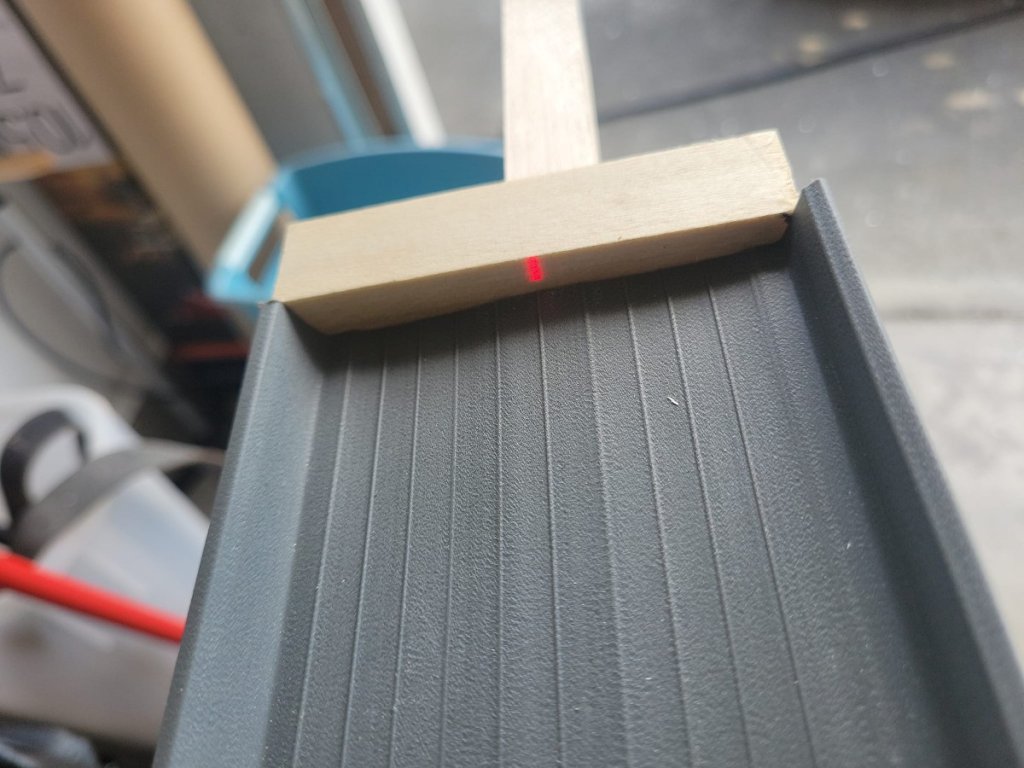

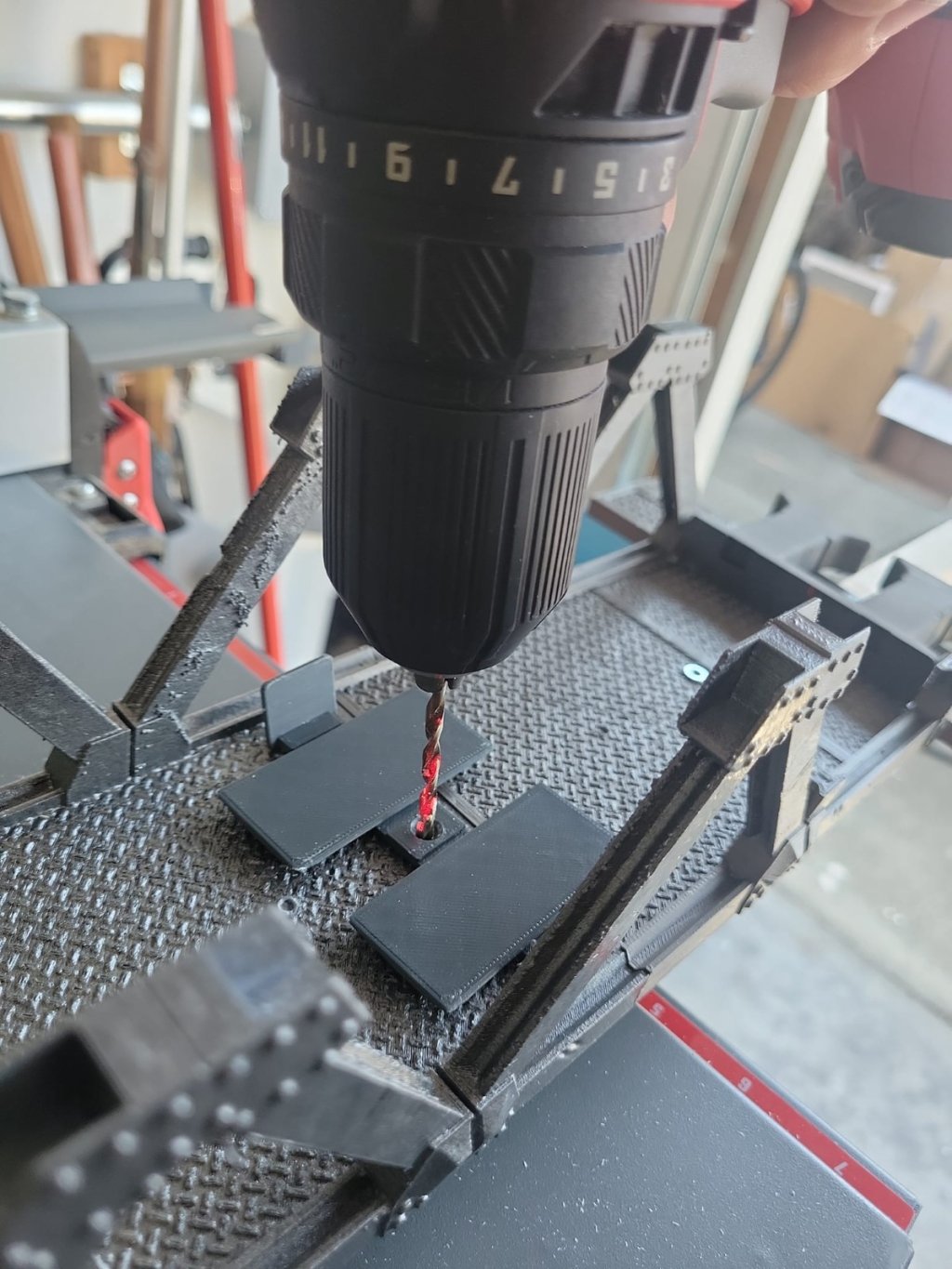

Here you see the laser hitting my drill bit, as I predrill the holes for the screws, ensuring I am on target.

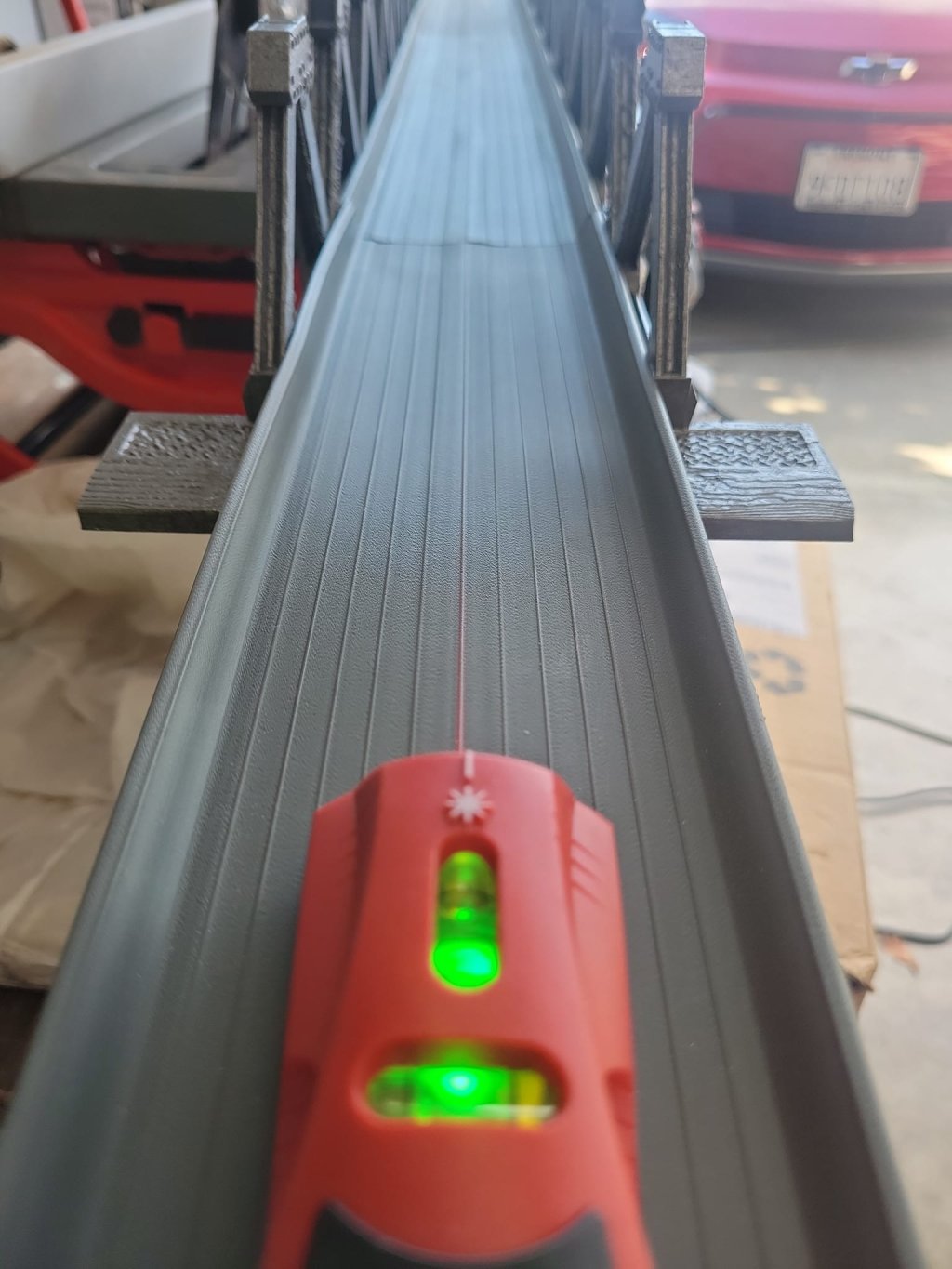

Here, we see how the laser level proves the roads straightness.
Blammo, perfect!
